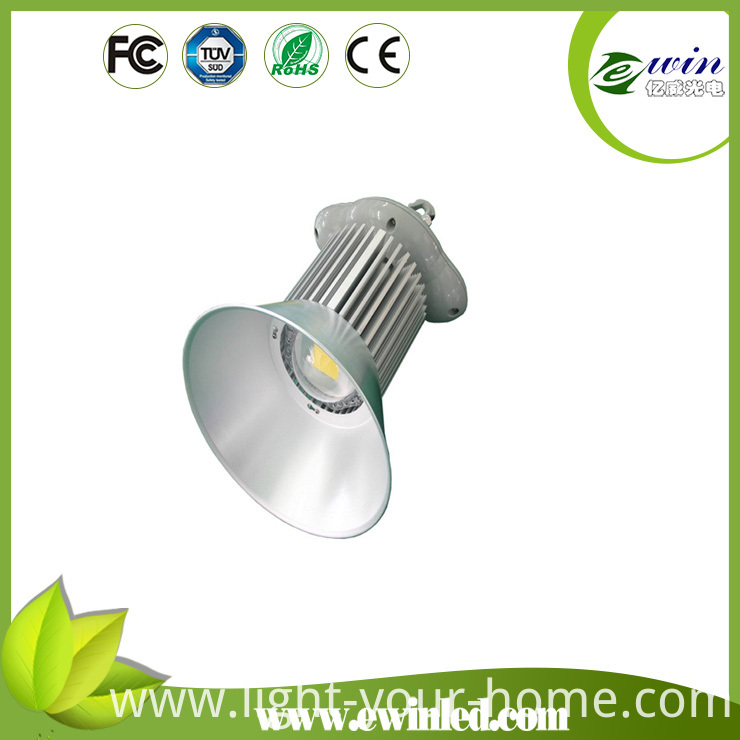

Competitive Price Explosion Proof Outdoor 120W LED High Bay Light
Basic Info
Model No.: EW-EPHB-120W-A
Product Description
Model NO.: EW-EPHB-120W-A Lamp Body Material: Aluminum Alloy Usage: Warehouse IP Rating: IP68 Beam Angle: 60° Grade: Ex De II C T4 GB Work Frequency: 50/60 Hz Lamp Luminous Efficiecy: 98% Thd: <10% Working Lifetime: 50000-100000 Hrs Trademark: OEM Specification: UL / CUL / DLC / Atex / CE / RoHS / SAA / PSE HS Code: 94054090 Color Temperature: Pure White Power: 120W Lifespan: ≥50000H Certification: CE, LVD, PSE, RoHS, SAA, UL, VDE LED Chips: Philips Lumileds Input Voltage: AC100-277V Color Temperature (CCT): 5700-6500k CRI: >72 Rating of Anti-Explosive: 50000-100000 Hrs Item Type: High Bay Lights Transport Package: Carton Origin: Shenzhen, China Competitive price explosion proof Outdoor 120w led high bay light Application of explosion proof indicator light 1. Gas station,processing workshop or storage warehouse for Edible Oil,food and other oil products,smelting workshop which easily producing explosive dust and gases; chemical factories,warehouses and other special places. 2. Also can applied in Factories,workshops,Cargo space,exhibition centers,shopping malls or supermarkets,stadiums,toll stations, etc. 120W (100°) Explosion proof led high bay light
Specialty with meanwell explosion proof led high mast light: 1,Using high power COB Leds and Meanwell driver; the lamp's luminous efficiency can reach 80-100LM/W, and Ra >80;Fins heating dissipation design enables the LED Tj within 85ºC, lifespan more than 35,000 hours ,the max power up to 200W; with protecting rate: IP65. 2, The anti-explosion high bay light is designed and certified according to standards for safety as below: GB3836.1-2010 Explosive environment Part 1:Equipment General Requirements;GB3836.8-2003 Electrical apparatus for explosive gas atmospheres-Part8: standards for "n" type electrical equipment; with Ex-marking ExnRIIT4Gc. 3, The light can be used at a place in which an explosive atmosphere in the form of explosive dust or combustible fibre in mixture with air is likely to occur continuously or frequently in short time, or for long periods in normal operation. According to the classification of explosion proof grade and application, the light can be use in Zone2. Surface temperature of item for safety:≤135ºC,Such as chemical factory or warehouse, gas station except mines. B.Shape Structure of antiexplosion canopy light Shell Material:Aluminum Alloy Shell Color:silver white Net Weight:8.3 Kg Unit:mm ±2mm
Explosion-proof Parameters 1)Explosion-proof(Grade) ExnRIIT4Gc Ex-Explosion-proof (1)nR-Explosion proof form code of explosion proof electric equipment, nR for restrict breathing type, the others: D for explosion suppression type; IA for flameproof intrinsically safe type; MB for pouring type ; (2)II-Explosion proof electrical equipment is divided into type I,II,IIIclass; class I used for coal mine gas environment; class II, III used for other explosive gases electric equipments except coal mines which can easily generate gas. (3)T4-equipment external surface temperature range ( T4 means the temperature of any point on the external surface of UFO explosion-proof mining lamp ≤ 135 ºC); (4)Gc-Electric equipment protection level, and has a corresponding relationship to its used place, Gc level of protection for the general, and it can be used in explosive gas environment -Zone 2; 2)Hazardous area classification of gas station lighting
3)Gas temperature group of explosion proof floodlight
This series explosion-proof lamp temperature group is T4, according to the above standard data, this series lamp can be used in the warehouse, workshop in the scope of T1, T2, T3, T4, and related places that require explosion-proof lamp lighting can be applied. 4.Parameters of explosion proof fixture definition

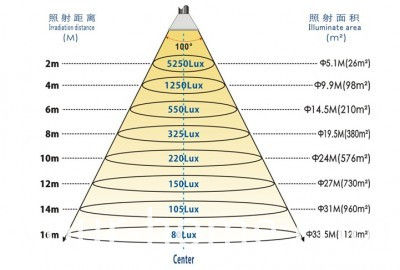

7.Illumination Distance/illuminance/Irradiated Area
8Packing specification with vapor proof fluorescent lights explosion proof Body(L)412×(W)312×(H)428mm 1PC/CTN 10Kg Reflector(L)432×(W)432×(H)534mm 10PCS/CTN 4.5Kg
Shenzhen Ewin Lighting Technology Co., Ltd. is a hightech enterprise who specializes in developing, manufacturing and selling of LED Lighting, and lighting accessoriy. Our product includs LED downlight, LED Panel Light, LED neon flex, LED tube, LED bulb, LED spotlight, LED flexible strip, LED brick, LED downlight, LED Corn Light, LED Tunnel Light, LED High Bay Light, LED floodlight, LED streetlight, LED string light, explosion proof LED high bay light, explosion proof floodlihgt, Wireless DMX512 controller, LED power supply, USB DMX controller, etc. Contact us if you need more details on Explosion Proof Induction Lighting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED High Bay Light、LED Explosion-Proof High Bay Lights. If these products fail to match your need, please contact us and we would like to provide relevant information.
Specialty with meanwell explosion proof led high mast light: 1,Using high power COB Leds and Meanwell driver; the lamp's luminous efficiency can reach 80-100LM/W, and Ra >80;Fins heating dissipation design enables the LED Tj within 85ºC, lifespan more than 35,000 hours ,the max power up to 200W; with protecting rate: IP65. 2, The anti-explosion high bay light is designed and certified according to standards for safety as below: GB3836.1-2010 Explosive environment Part 1:Equipment General Requirements;GB3836.8-2003 Electrical apparatus for explosive gas atmospheres-Part8: standards for "n" type electrical equipment; with Ex-marking ExnRIIT4Gc. 3, The light can be used at a place in which an explosive atmosphere in the form of explosive dust or combustible fibre in mixture with air is likely to occur continuously or frequently in short time, or for long periods in normal operation. According to the classification of explosion proof grade and application, the light can be use in Zone2. Surface temperature of item for safety:≤135ºC,Such as chemical factory or warehouse, gas station except mines. B.Shape Structure of antiexplosion canopy light Shell Material:Aluminum Alloy Shell Color:silver white Net Weight:8.3 Kg Unit:mm ±2mm
Explosion-proof Parameters 1)Explosion-proof(Grade) ExnRIIT4Gc Ex-Explosion-proof (1)nR-Explosion proof form code of explosion proof electric equipment, nR for restrict breathing type, the others: D for explosion suppression type; IA for flameproof intrinsically safe type; MB for pouring type ; (2)II-Explosion proof electrical equipment is divided into type I,II,IIIclass; class I used for coal mine gas environment; class II, III used for other explosive gases electric equipments except coal mines which can easily generate gas. (3)T4-equipment external surface temperature range ( T4 means the temperature of any point on the external surface of UFO explosion-proof mining lamp ≤ 135 ºC); (4)Gc-Electric equipment protection level, and has a corresponding relationship to its used place, Gc level of protection for the general, and it can be used in explosive gas environment -Zone 2; 2)Hazardous area classification of gas station lighting
Explosive substance | Area definition | Chinese standard | Foreign standards |
Gas(ClassI) | Under normal circumstances, the explosive gas mixture continuously or long time existence. | Zone 0 | Div.1 |
Under normal circumstances, the explosive gas mixture is likely to existent site | Zone 1 | ||
Under normal circumstances, the explosive gas mixture is not possible appear, Only in abnormal circumstances, occasionally or short time existed site ; | Zone 2 | Div.2 | |
Dust or fiber(ClassII/ClassIII) | Under normal circumstances, explosive dust or combustible fibre and air mixture may be continuous, a short time frequent appear or long time existence. | Zone 10 | Div.1 |
Under normal circumstances, explosive dust or combustible fibre and air mixture can not appear, just in case of abnormal condition, occasionally or short time appears. | Zone 11 | Div.2 |
Temperature category | Explosion proof electrical equipment surface temperature | Common explosive gas |
T1 | ≤450ºC | Methane,Toluene,Methyl ester,Ethane,Propane,Acetone,Acrylic acid,Benzene,Styrene,Carbon monoxide,Ethyl acetate,Acetic acid,Chlorobenzene,Methyl acetate,Ammonia,Acrylic ester,Two ether,City gas,Hydrogen,Water gas |
T2 | ≤300ºC | Methanol,Ethanol,Ethyl benzene,Propyl alcohol,Propylene,Butyl alcohol,Butane,Butyl acetate ,Amyl acetate,Cyclopentane,Butadiene,Epoxy propane,Ethylene,Acetylene |
T3 | ≤200ºC | Pentane,Amyl alcohol,Hexane,Hexyl alcohol,Heptane,Octane,Ring of ethanol,Turpentine oil,Naphtha,Petroleum (gasoline ),Fuel oil,Amyl alcoholfour,Two ether,Acrolein,Hydrocarbon |
T4 | ≤135ºC | Acetaldehyde,Tetrafluoroethylene,Trimethylamine,Ethyl ether,Two ether |
T5 | ≤100ºC | Carbon disulfide |
T6 | ≤85ºC | Acid ethyl ester,Nitrous acid ethyl ester |
Input Voltage | AC100~240V AC200~480V For North America | Color Rendering Index | Ra>80 |
Frequency Range | 50~60Hz | Beam Angle | 100° |
Power Factor | >0.97 | LED Reduction Rate | 1~3% / 1,000Hrs |
Power Efficiency | >90% | Color Temperature | 2700~7000K |
LED Working Voltage | DC30~36V | Working Temperature | -20ºC~+45ºC |
LED Power | 120W | IP Grade | IP65 |
Total Power | 135W | Working Life-span | >35000H |
Luminous Efficiency | 80-100lm / W | Power line | VDE 3×1.5mm2 |
Connect wires | Brown→L /Blue→N Yellow or Green→G |
8Packing specification with vapor proof fluorescent lights explosion proof Body(L)412×(W)312×(H)428mm 1PC/CTN 10Kg Reflector(L)432×(W)432×(H)534mm 10PCS/CTN 4.5Kg
Shenzhen Ewin Lighting Technology Co., Ltd. is a hightech enterprise who specializes in developing, manufacturing and selling of LED Lighting, and lighting accessoriy. Our product includs LED downlight, LED Panel Light, LED neon flex, LED tube, LED bulb, LED spotlight, LED flexible strip, LED brick, LED downlight, LED Corn Light, LED Tunnel Light, LED High Bay Light, LED floodlight, LED streetlight, LED string light, explosion proof LED high bay light, explosion proof floodlihgt, Wireless DMX512 controller, LED power supply, USB DMX controller, etc. Contact us if you need more details on Explosion Proof Induction Lighting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED High Bay Light、LED Explosion-Proof High Bay Lights. If these products fail to match your need, please contact us and we would like to provide relevant information.
