Automatic Swing Turnstyle Wing Turnstile Gate Barrier

Automatic Swing Turnstyle Wing Turnstile Gate Barrier

The material is standard 304 stainless steel, during the casing whithin a professional guide tank. and during the casing within a professional guide tank. The supermarket swing gate can be installed in indoor, outdoor with shed, applicable to restrict the passing rate of the place, has the count, attendance, current limiting funtion. The enterclose are more wider than others.Have a higher traffic capacity, can make motorcycle, bicycle and other small vehicles through, also can be used as a barrier-free access.

Technical Specification:

1	Product Name	Automatic Swing Barrier Gates
2	Environmental Temperature	-20℃~ +70℃
3	Operating Humidity	≤95%
4	Operating voltage	110V/220V AC 50Hz/60Hz
5	Operating power	80 W
6	Active distance	3 ~ 8 m
7	Waterproof class	IP54
8	Interface	RS 485
9	Passage width	600-830 mm
10	Indicator light	LED
11	Material	304 stainless steel
12	Thickness	1.5 mm
13	Starting-up time	3 s
14	Switching time	1 s
15	System boot time	3 s
16	Transit speed	30-45 people/minute
17	Working life	5 million
18	Dimension	168*980mm
19	Direction	Unidirectional ,Bidirectional (optional)

Function:

1. Waterproof, sunscreen, anti-temperature, anti-cold.
2. Access Prompt function:Red and green light prompt the passing information.
3. Can set a one-way or two-way control
4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
5. Small button into the main control panel ,can be set state of equipment.
6. Anti-pinch, anti bumps function
7. Scour protection function ,when the gate signal is not received, arms keep closed
8. With automatic reset function,if does not pass in the set time,turnstile will get back
9. Normally open or closed can be freely adjusted
10. can be used with a variety of reading devices, work when it receive relay switch signal
11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically

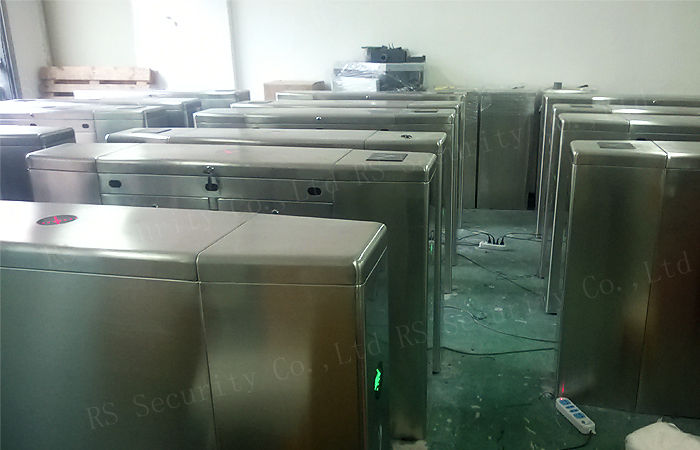

.................................................................Turnstiles Workshop............................................................

.................................................................Turnstiles application............................................................

.................................................................Turnstiles Package............................................................

Contact us if you need more details on Fingerprint Automatic Turnstile. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Automatic Turnstiles System、Automatic Turnstile Gate. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Barrier > Swing Barrier
